产品装箱简图


产品装箱清单:


组装步骤如下:前往观看安装视频

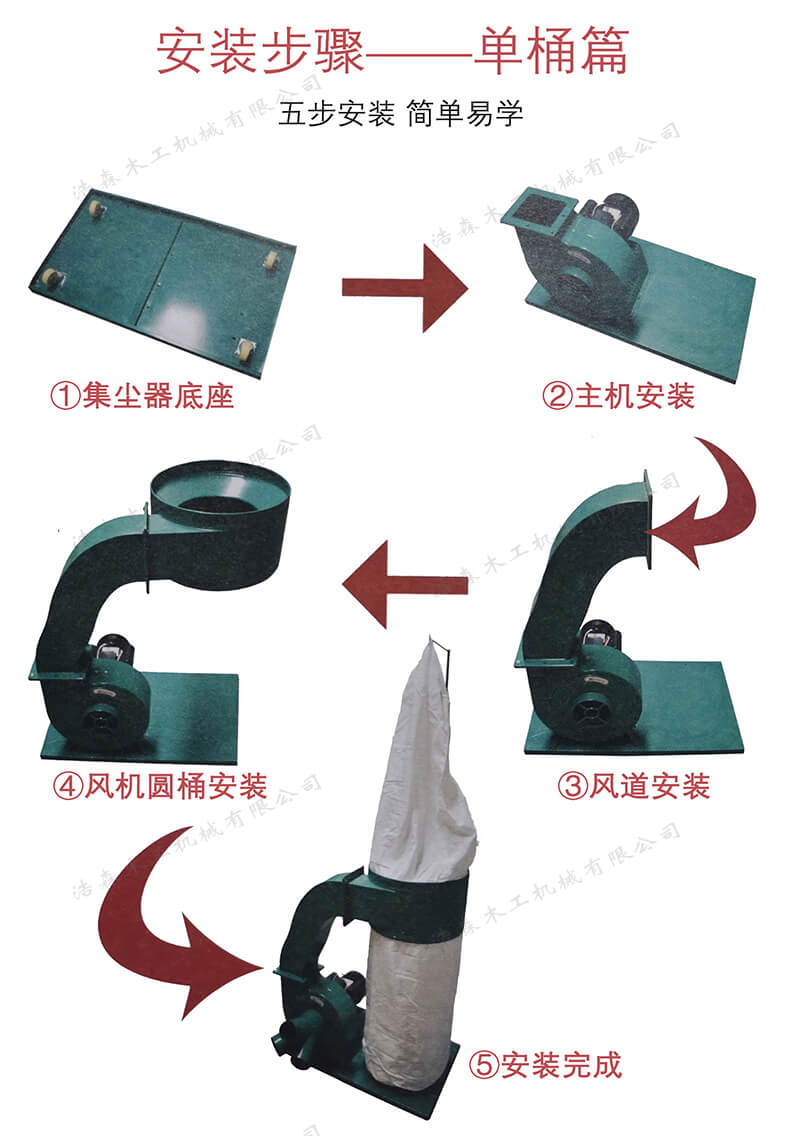

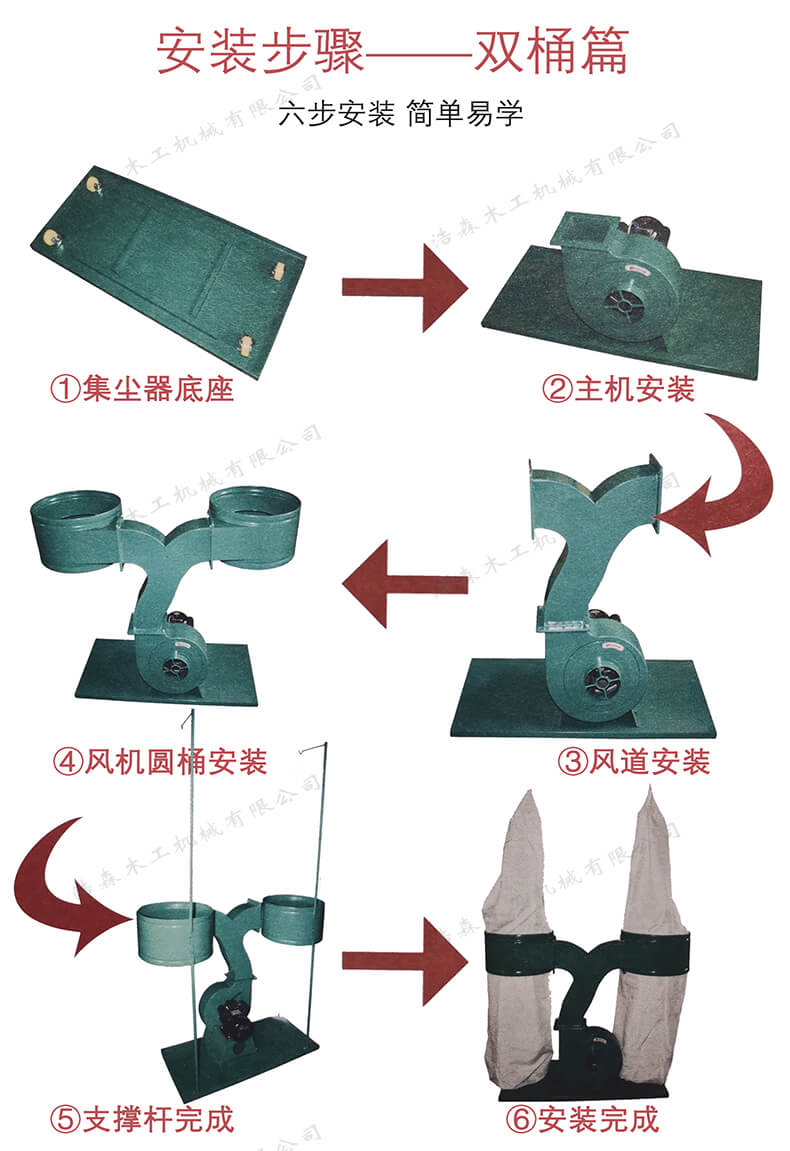

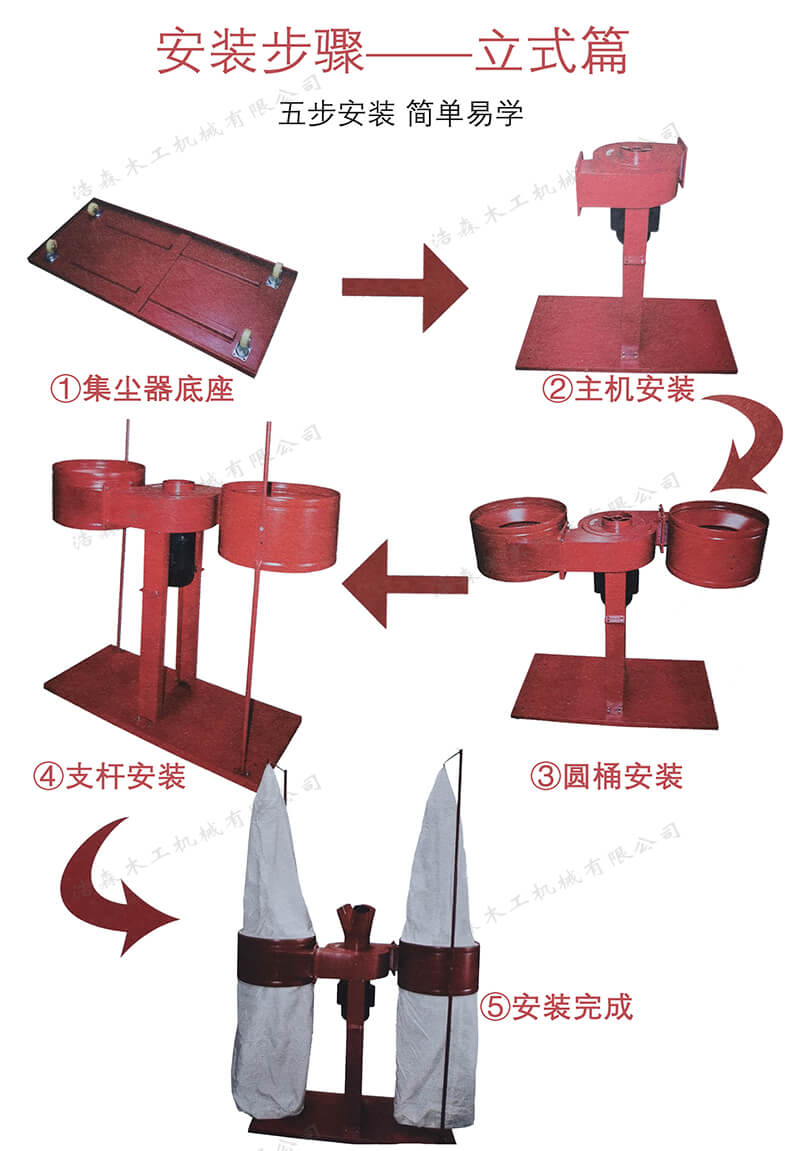

首先将底板上部朝下,将四个方向轮安装到位,并用扳手上紧.

The first floor upside down, the four wheel installed in place, and use a wrench to tighten.



将吸尘风机与电机组件如图2所示用提供的固定,确保安装到底盘上。

The dust suction fan and motor assembly are provided in Figure 2 to provide a fixed, to ensure that the installation is installed on the bottom plate.


如图3把橡胶垫片放在风机接口处,其密封作用。

As shown in Figure 3, the rubber gasket on the fan interface, its sealing effect.



如图4所示,使用所提供的6个螺丝讲三叉。

As shown in Figure 4, use the provided 6 screws to speak the trigeminal



如图5所示,再将两个圆筒和剩余的两个橡胶垫片安装到Y型接口的法兰上。

As shown in Figure two, the 5 cylinder and the remaining two rubber gaskets are installed on the flange of the Y type interface.



如图6所示,表明圆筒、Y型接口、主机之间的法兰接口已接好。

As shown in Figure 6, indicating that the cylinder, Y type interface, the host interface between the flange has been good.



如图7所示,将支撑杆插座与圆筒支撑杆一应固定在圆筒上。

As shown in Figure 7, the support rod and a support rod socket cylinder fixed on the cylinder.





如图8所示,将圆筒支撑杆与底盘固定到位。

As shown in Figure 8, the cylinder support rod and the chassis fixed in place.



如图9所示,将布袋支撑杆插入上布袋支撑杆插座内。

As shown in Figure 9, the cloth bag support rod is inserted into the bag support rod socket.



接下来,如图10所示将上布袋顶端的耳环分别悬挂在上布袋支撑杆的挂钩上。

Next, as shown in Figure 10, the top of the bag on the top of the earrings are hanging on the hook on the bag support.

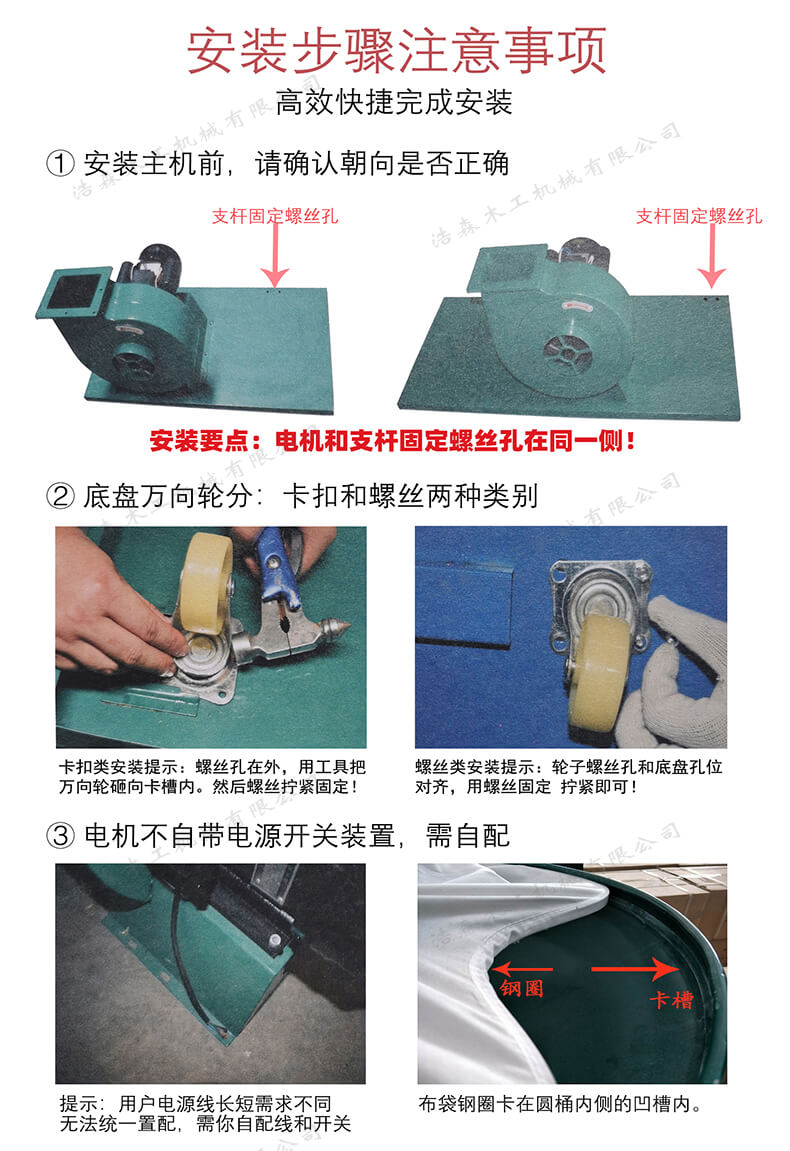

如图11所示,将布袋口钢圈用手压缩放入相应的槽位,松手,布袋即自行弹回锁紧。

As shown in Figure 11, the bag mouth ring by hand compression into the corresponding slot, let go, will automatically lock back bag.





如图12所示,将四通吸尘口插入主机的进风口位置即可。

As shown in Figure four, the 12 - way dust collector can be inserted into the air inlet position of the main


如图所示,为安装好的可移动式布袋吸尘器全貌,即可准备连接机器使用。在通电之前注意检查电源,电流、电压是否妥当,电机是否接地,旋转方向是否和标志方向相同。

As shown in the figure, for the installation of a good mobile bag vacuum cleaner whole picture, you can be ready to use the machine. Pay attention to check the power before the power supply, the current, voltage is appropriate, whether the motor is grounded, the direction of rotation is the same as the direction of the logo.

保 修 范 围


    本产品出厂前均经严格检验,确保符合(GB12557-2000)及(XFB-01-01-2000)(木工机械安全通则)(MF90系列吸尘器技术特征)

     本产品自购买自日起保修90天,以下情况不属于保修范围。1、因用户电源电压不稳定或电压缺相造成的电机损坏。2、因不可抗力因素造成的损坏。3、超出适用范围或人为造成的故障。4、布袋等损耗品。5、本保修卡适用于国内。6、感谢您使用浩森木工机械有限公司出品的移动式吸尘器及其它木工机械,如有问题请及时与我们联系,谢谢合作!
